M-Center
Product information "M-Center"
The M-Center offers a simple solution to log measurements from 20 to 250 M-Bus and up to 64 Modbus meters. It is versatile and allows the acquisition of measurements from different sources (M-Bus, RS485 and Modbus TCP). With its easy operation and robust construction, the data logger is ideal for use in industrial environments. It is equipped with various interfaces (e.g. BACnet IP, MQTT). The M-Center is easy to install and provides detailed data necessary for energy management and energy cost billing (e.g. ZEV). With the data logger with M-Bus interface, you can reduce your energy costs and increase the efficiency of your systems.

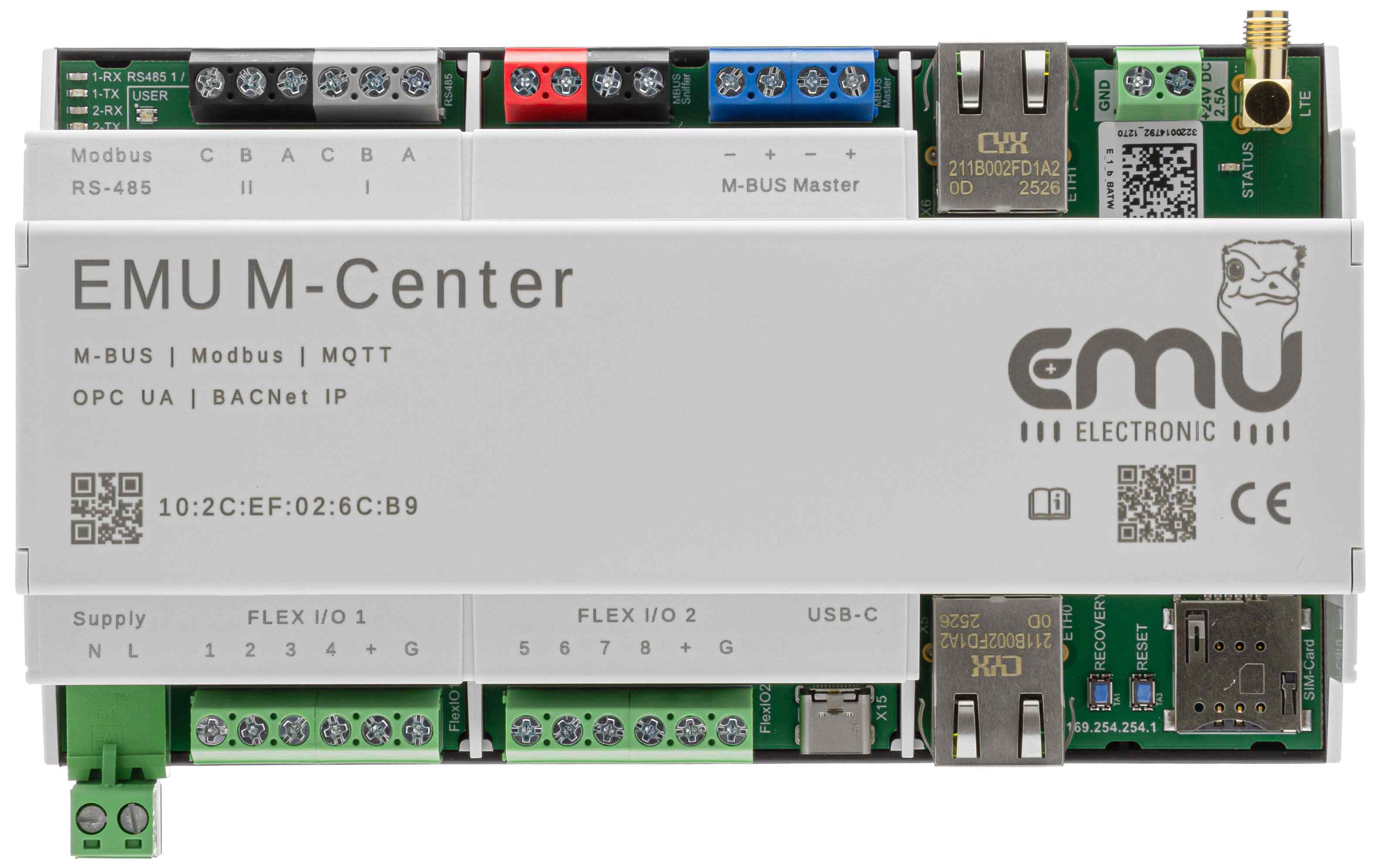

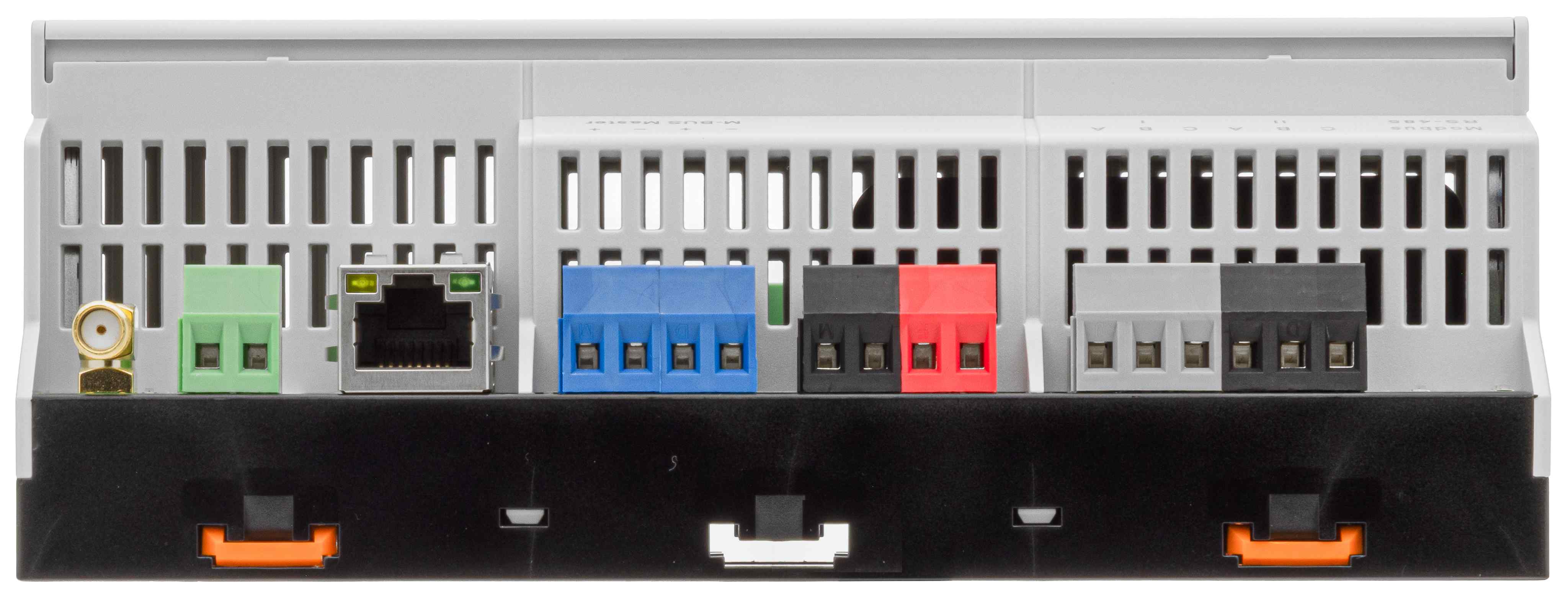

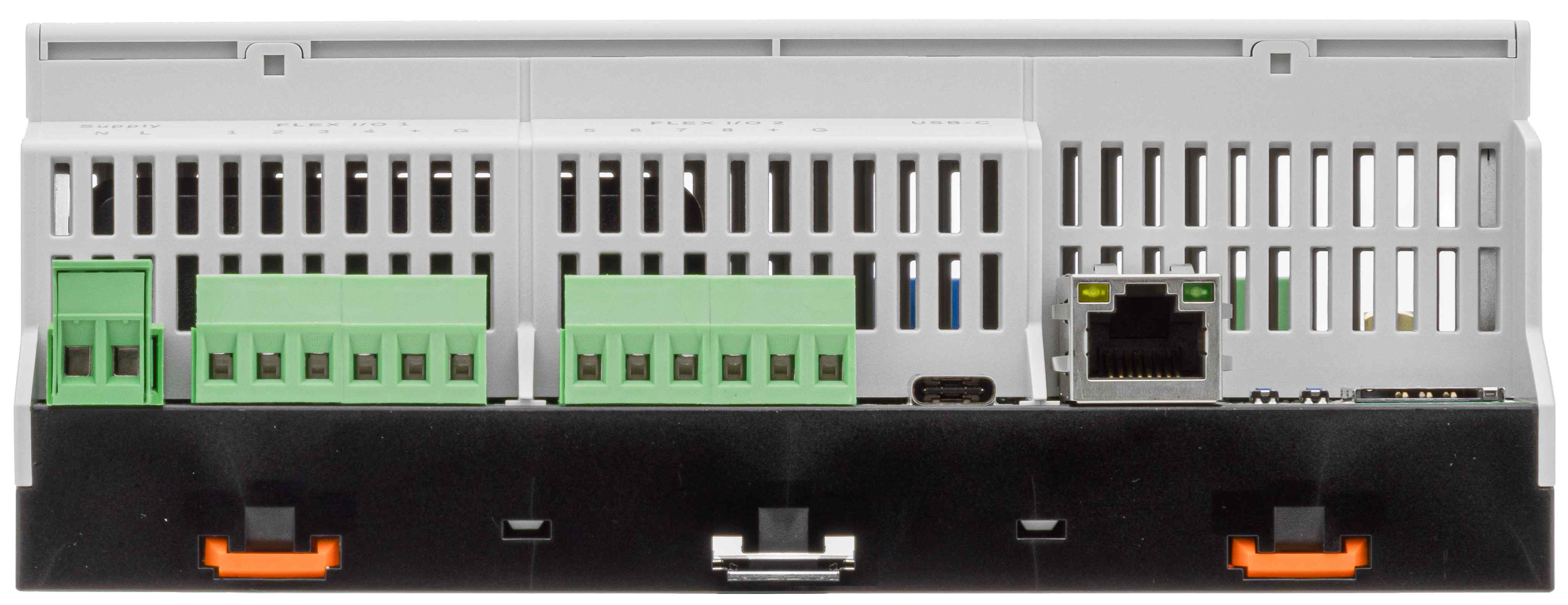

Hardware Features
- Integrated M-Bus high-performance level converter for up to 250 M-Bus slaves | License for 20 M-Bus meters is activated ex works
- 2x RS485 interface for reading Modbus RTU (license optional)
- 2x RJ45 interface (1x for LAN connection and 1x service port)
- 8x Flex I/Os
- Integrated SIM card LTE modem
- USB interface
- 230V power supply
Integration into existing systems
- BACnet IP gateway function (option)
- OPC UA gateway function (option)
- MQTT (option)
- Modbus TCP (option)
Firmware and software functions
- Connection to Joulio-Web Device Management | Digital Twin and secure firmware update
- Data acquisition from M-Bus, Modbus RTU and Modbus TCP devices
- Suitable for heat, water, gas and electricity meters with M-Bus
- System integration via optional MQTT, OPC UA and BACnet IP license
- Professional data preparation Firmware update & backup via web interface Data recording and export for analysis
- Energy consumption is transparent for targeted measures
- Suitable for energy data management according to ISO 50001
Features and requirements according to ISO 50001
- Automated reporting
- Continuous data evaluation
- Visualization incl. individual charts e.g. with Joulio-Web
- Integration into existing systems
- Alarm e.g. with Joulio-Web
- Support & update service
Data logger configuration
The complete configuration of the M-Center is done via an attractive and easy-to-use user interface. This can be done with any common web browser (HTML 5).
The automated readout guarantees error-free and continuous data acquisition for later analysis and billing according to ISO 50001. Energy consumption is transparent and savings potentials are identified.
Visualization
For the visualization of energy consumption and current measurements, we recommend the energy management software Joulio-Web.
Commissioning
- Automated meter search
- DHCP
- RJ45 service port
Manufacturer: EMU Electronic AG
Zubehör | Accessories
M-Center License upgrade 20 to 60 M-Bus devices
Software license extension for EMU M-Center.
M-Bus license extension | 20 to 60 Firmware upgrade from 20 M-Bus devices to a maximum of 60 devices
Request B2B login to view prices & discount.
M-Center License upgrade 20 to 120 M-Bus devices
Software license extension for the EMU M-Center.
M-Bus license extension | 20 to 120 Firmware upgrade from 20 M-Bus devices to a maximum of 120 devices
Request B2B login to view prices & discount.
M-Center License upgrade 20 to 250 M-Bus devices
Software license extension for the EMU M-Center.
M-Bus license extension | 20 to 250 Firmware upgrade from 20 M-Bus devices to a maximum of 250 devices
Request B2B login to view prices & discount.
BACnet IP | licence
BACnet IP licence for EMU M-Bus Center
BACnet IP licenceThe EMU M-Center works as M-Bus / Modbus to BACnet IP Gateway. This BACnet IP licence makes it possible to read out values by BACnet IP.
EMU Electronic AGManufacturer Part number: 210.300.00
Request B2B login to view prices & discount.
