Energy Management

Access the web-based energy management software Joulio-Web with the software license from EMU Electronic AG. Take advantage of the discounted software license from EMU Electronic AG for EMU electricity meters, Helvatron water meters and Helvatron heat meters. With the meter license for Joulio-Web you get a web-based energy management software which can be used for EMU electricity meters, Helvatron water meters and Helvatron heat meters.With Joulio-Web's ease of use and quick setup, you benefit from optimal energy management software. For each meter (EMU or Helvatron) you need one license.The prices shown in the store refer to the monthly costs.

Charts add-on app.The Joulio-Web Energy Management Software is a modular software solution that allows you to visualize your energy evaluations using the add-on app "Charts". To install the package you need the Joulio-Web SaaS | Basic subscription, part number 250.000.00.

Optimize your energy management with Joulio-Web, our ISO 50001 web-based energy management software. Our software offers an intuitive user interface that allows you to quickly and easily implement your energy management, reduce energy costs and achieve energy savings. Joulio-Web has an unlimited number of meters and sensors, sites and dashboards, easy data import from M-Center, charts and much more. Joulio-Web also supports a variety of data sources such as: M-Bus  LoRa  RS485  Modbus TCP  MQTT  CSV With Joulio-Web you can continuously analyze your data, visualize it, compare it with customized charts, create automated reporting, set up alerts, integrate with existing systems and much more. Plus, you get a support & update service to manage your cost center and apartment billing.Use our web-based ISO 50001 energy management software to monitor, analyze, and optimize your energy management and save energy costs.Contract period: 12 months, cancellation period 3 months to the end of the calendar yearThe prices shown in the store refer to the monthly costs.

BACnet IP licence for EMU M-Bus Center BACnet IP licenceThe EMU M-Center works as M-Bus / Modbus to BACnet IP Gateway. This BACnet IP licence makes it possible to read out values by BACnet IP.  EMU Electronic AGManufacturer Part number: 210.300.00

Software license extension for EMU M-Center. M-Bus license extension | 20 to 60 Firmware upgrade from 20 M-Bus devices to a maximum of 60 devices

MQTT licence for EMU M-Bus Center MQTT licenceThe EMU M-Center works as M-Bus / Modbus to MQTT Gateway. This MQTT licence makes it possible to read out values by MQTT.  EMU Electronic AGManufacturer Part number: 210.300.03

Software license extension for the EMU M-Center. M-Bus license extension | 20 to 120 Firmware upgrade from 20 M-Bus devices to a maximum of 120 devices

OPC UA licence for EMU M-Bus Center OPC UA licenceThe EMU M-Center works as M-Bus / Modbus to OPC UAGateway. This OPC UA licence makes it possible to read out values by OPC UA.License for max. 120 Meters  EMU Electronic AGManufacturer Part number 210.300.01

Software license extension for the EMU M-Center. M-Bus license extension | 20 to 250 Firmware upgrade from 20 M-Bus devices to a maximum of 250 devices

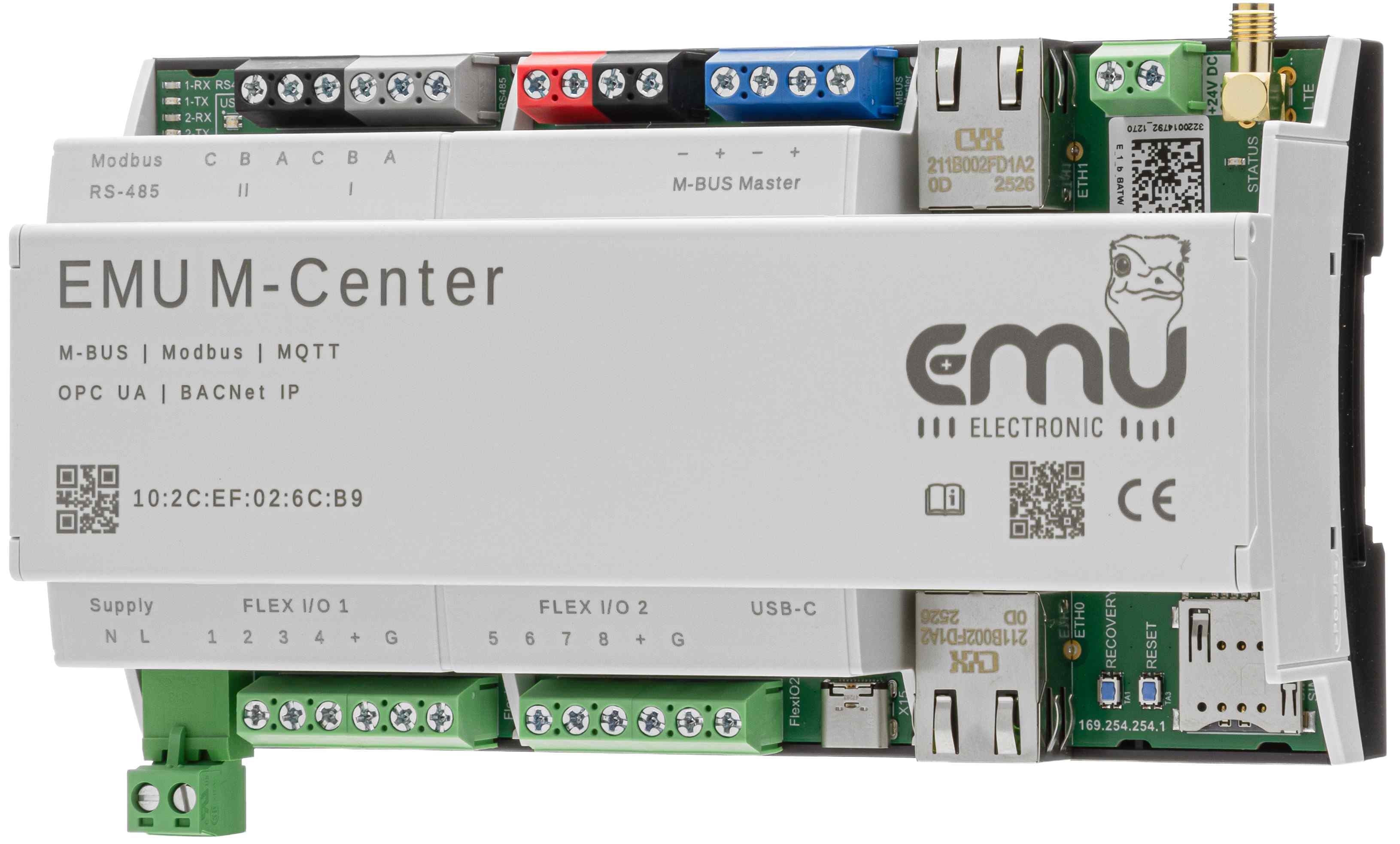

The M-Center offers a simple solution to log measurements from 20 to 250 M-Bus and up to 64 Modbus meters. It is versatile and allows the acquisition of measurements from different sources (M-Bus, RS485 and Modbus TCP). With its easy operation and robust construction, the data logger is ideal for use in industrial environments. It is equipped with various interfaces (e.g. BACnet IP, MQTT). The M-Center is easy to install and provides detailed data necessary for energy management and energy cost billing (e.g. ZEV). With the data logger with M-Bus interface, you can reduce your energy costs and increase the efficiency of your systems. Hardware Features Integrated M-Bus high-performance level converter for up to 250 M-Bus slaves | License for 20 M-Bus meters is activated ex works 2x RS485 interface for reading Modbus RTU (license optional) 2x RJ45 interface (1x for LAN connection and 1x service port) 8x Flex I/Os Integrated SIM card LTE modem USB interface 230V power supply Integration into existing systems BACnet IP gateway function (option) OPC UA gateway function (option) MQTT (option) Modbus TCP (option) Firmware and software functions Connection to Joulio-Web Device Management | Digital Twin and secure firmware update Data acquisition from M-Bus, Modbus RTU and Modbus TCP devices Suitable for heat, water, gas and electricity meters with M-Bus System integration via optional MQTT, OPC UA and BACnet IP license Professional data preparation Firmware update & backup via web interface Data recording and export for analysis Energy consumption is transparent for targeted measures Suitable for energy data management according to ISO 50001 Features and requirements according to ISO 50001 Automated reporting Continuous data evaluation Visualization incl. individual charts e.g. with Joulio-Web Integration into existing systems Alarm e.g. with Joulio-Web Support & update service Data logger configuration The complete configuration of the M-Center is done via an attractive and easy-to-use user interface. This can be done with any common web browser (HTML 5). The automated readout guarantees error-free and continuous data acquisition for later analysis and billing according to ISO 50001. Energy consumption is transparent and savings potentials are identified. Visualization For the visualization of energy consumption and current measurements, we recommend the energy management software Joulio-Web. Commissioning Automated meter search DHCP RJ45 service port Manufacturer: EMU Electronic AG

Modbus TCP Server licence for EMU M-Bus Center Modbus TCP Server licenceThe Modbus TCP server license makes it possible to read out the measured values of the M-Bus and RS485 devices via Modbus TCP.Use case:M-Bus to Modbus TCPRS485 to Modbus TCPThe EMU M-Center reads out the connected devices cyclically and makes the current measured values available via Modbus TCP.

EMU Electronic AG 210.200.01
